"Manufacturer Hyundai Heavy Industries Co., Ltd.

Model or type number HSC-2300S" "SIDE THRUSTER SYSTEM HSC-2300S 1800KW - (C1) [SAH01-01]

Particulars : PROPELLER UNIT

Manufacturer Hyundai Heavy Industries Co., Ltd.

Model or type number HSC-2300S

Number of propeller unit with tunnel 1 (One) / unit

Type Controllable pitch & skewed type

Propeller diameter, O.D, mm 2300

Number of propeller blade 4 (Four)

Thrust, kN 250.1

Propeller speed, rpm 287

Input shaft speed, rpm 1191

Input power, kW 1800

Direction of input shaft rotation view from prime mover Clockwise

Position of propeller blade Port side

Maker : HYUNDAI / Serial No : [KAI1561-BOW-01] [KAI1561-BOW-02]"

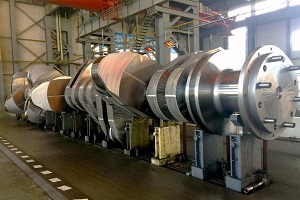

SACM 175 AB, Crankshafts
