FOR MAIN ENGINE

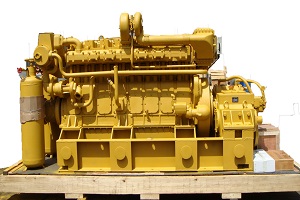

MANUFACTURER:YANMAR QINGDAO ZICHAI BOYANG DIESEL ENGINE

TYPE:YANMAR 8N330-EN

SERIAL NO:20098064

PARALLEL PIN.REF 16

YANMAR.N330-EN.142613-53200

PACKING

YANMAR.N330-EN.23414-140000

FIG.-1CYLINDER BLOCK & LINER

FIG-80. STARTING VALVE

FIG.-21 EXH.MAINFOLD &COVER-TUR.FW SIDE

FIG 18.  CYLINDER HEAD

GB/T899, M-14X1,5X70 REF. 34,STUD BOLT M-14X1,5X70

GB/T6170 M-14X1,5 REF. 35.NUT M-14X1,5

FIG 19.  VALVE ROCKER ARM

FIG 20.  SUCTION BAND

FIG 27.  INDICATOR COCK

FIG 25.  VALVE MECHANISM

FIG 94 THERMO-METER(100-200*C)

FIG-60. FO.INJECTION VALVE. COOLING TYPE

PARALLEL PIN.REF 16

YANMAR.N330-EN.142613-53200

O-RING, REF. 15

YANMAR.N330-EN.142613-53361

COCK BODY COMP

YANMAR.N330-EN.153605-15301

TOOL FOR EXTRACTING OF THE BIG END BEARING – POS. 67, 69, 70, 72, 73, 77, 80 FROM THE ATTACHED PARTS LIST

YANMAR.N330-EN.NA

THERMOMETER-100*C,REF.4

YANMAR.N330-EN.28551-030500

NOZZLE

YANMAR.N330-EN.132654-53250
